A jog above the rest.
More performance - less work: The joggers from Senator Profi-Line vibrate stacked reams of materials, creating compact stacks with true and even edges. Thus enabling better cutting precision and performance.
For every requirement: The right jogger.
Schneider Senator offers joggers with and without pneumatically driven air-removal rollers. All joggers are free standing. Height-adjustable floor plates provide stable stands - there's no need to bolt the unit to the floor. The processing direction: (left, right or optionally to the rear), the table angle and the jogging intensity are adjustable.
The control devices have been ergonomically integrated. Operations are push-button and foot pedal controlled. The left and right side flaps are operated pneumatically. The air removal roller of the Profi-Line Jogger type ..77 is equipped with a safety bar. The air removal speed and -pressure is adjustable.

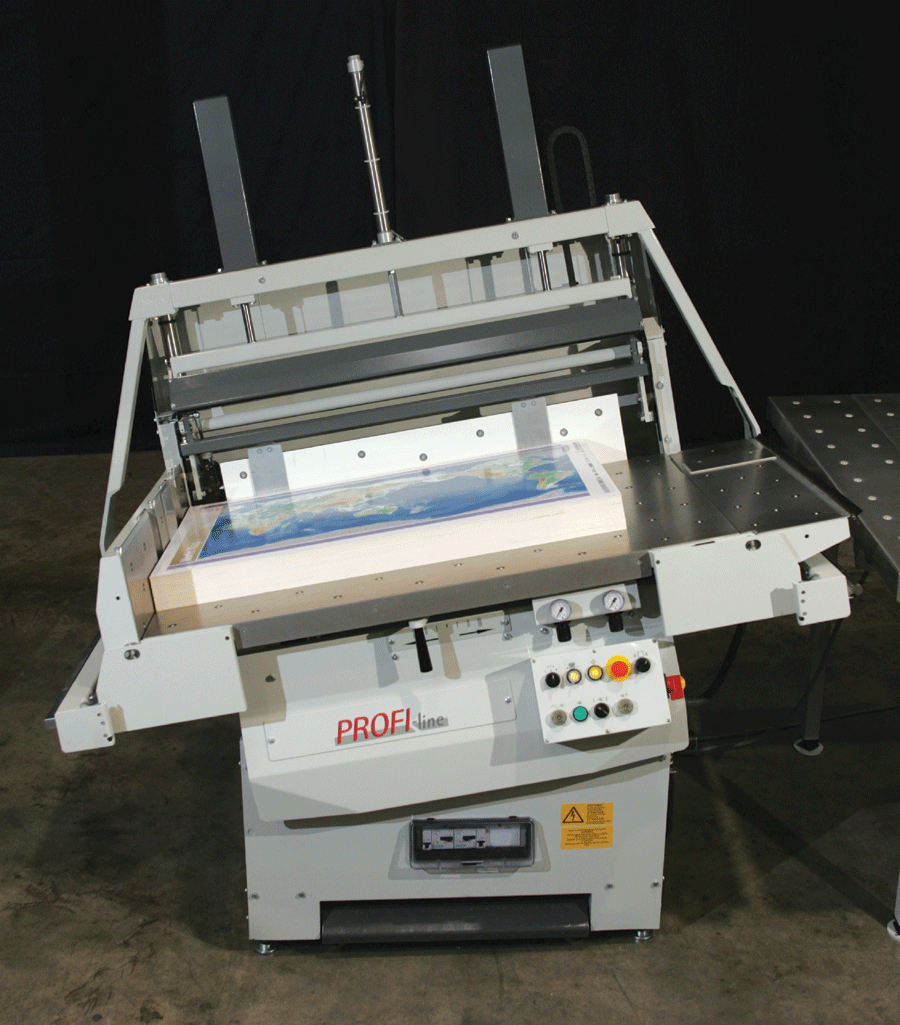

Features: Profi-Line Jogger Typ ..77
(with air removal roller)
Welded frame with automatic jogging mechanism
Siemens SP-control
Pneumatically controlled automatic side flaps left and right
High-quality stainless steel table with heavy-duty air cushion
Table-inclination adjustment with up to four steps (left and right)
Lay edge marks
Intermediate layer (can be installed so as to reduce the table's depth. Air removal in this case is not possible) - optional
Easy-to-use control
Jogging intensity infinitely adjustable (frequency controlled)
Vibration direction alternatively to the left or right
Air removal roller with infinitely adjustable air removal speed and pressure control
Two precision guides for tilt-free pressing
Separate pressure adjustment for downholder (optional)
Table height adjustable
Rubber shock absorbers at two levels ensure optimum vibration characteristics
Pusher for off loading to the rear (optional)
Automatic loading with gripper system GTS (optional)

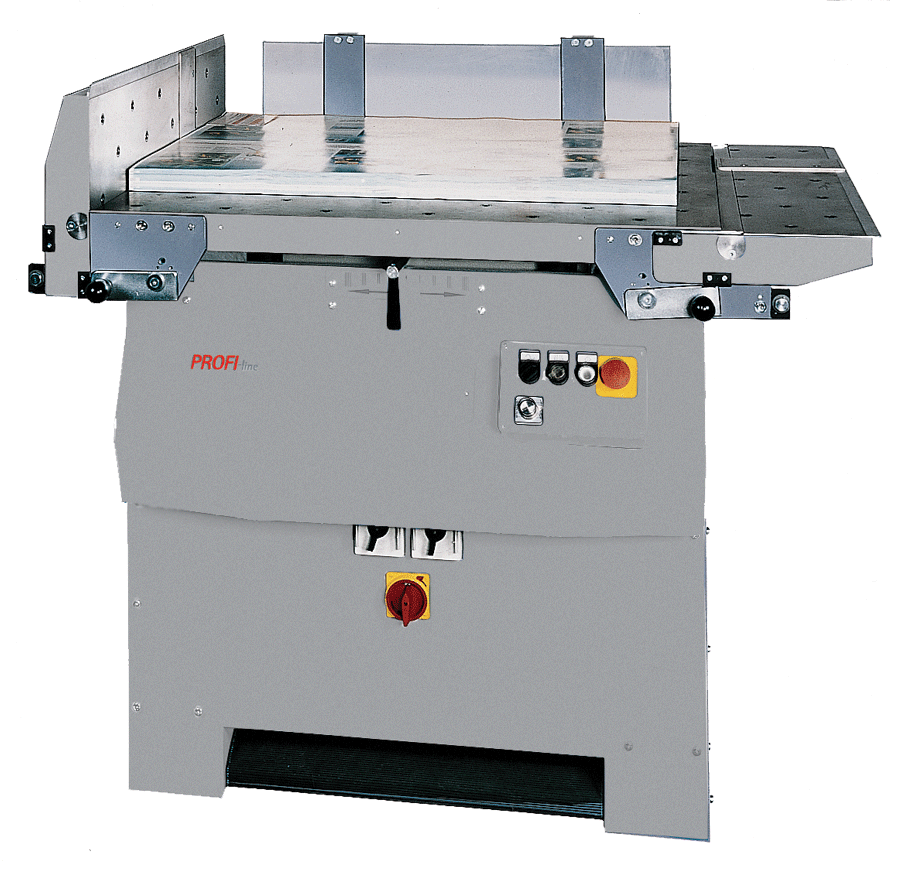

Features: Profi-Line Jogger Type ..72
(without air removal roller)
Welded frame with automatic jogging mechanism
Siemens SP-control
Pneumatically controlled side flaps left and right
High-quality stainless steel table with heavy duty air cushion
Table-inclination adjustment with up to four steps (left and right)
Lay edge marks
Intermediate layer (can be installed to reduce the table's depth) - optional
Easy-to-use control
Jogging intensity infinitely adjustable (frequency controlled)
Table height adjustable
Rubber shock absorbers at two levels ensure optimum vibration characteristics
Vibration direction alternatively to the left or right
